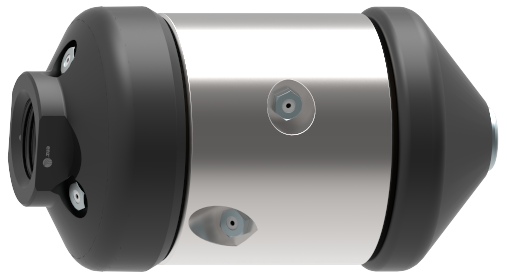

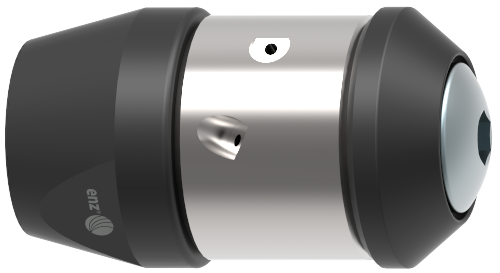

KBR nozzles
| Product description |
|---|
|
This allround enz® combination nozzle is excellent for flushing out pipes as well as adjoining lateral pipes at any angle. It only requires a very small pump capacity and uses 2 radial jets at a 90° angle to the pipe wall and 2 semi-radial retro-jets at a 45° angle.
This combination allows both, a forward thrust of the nozzle and simultaneously, a flushing away of the waste material. Applications - To remove organic deposits - To clean heat exchangers - Cleaning of fat deposits |
KBR nozzles 1/8" |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
 |
04.012K | Rotojet 12 mm short | 1/8" | 13 - 26 | 15 | 90°: 2 x 0.85, 45°: 2 x 0.90 | - | * | 12 x 26 | 0.02 | - | 350 |
|
04.016A04 | Rotojet 16mm | 1/8" | 18 - 60 | 5 | 4 x 0.4 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A05 | Rotojet 16mm | 1/8" | 18 - 30 | 5 | 4 x 0.5 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A06 | Rotojet 16mm | 1/8" | 18 - 60 | 5 | 4 x 0.6 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A07 | Rotojet 16mm | 1/8" | 18 - 60 | 6 | 4 x 0.7 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A08 | Rotojet 16mm | 1/8" | 18 - 60 | 10 | 4 x 0.8 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A09 | Rotojet 16mm | 1/8" | 18 - 60 | 15 | 4 x 0.9 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A10 | Rotojet 16mm | 1/8" | 18 - 60 | 18 | 4 x 1.0 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A11 | Rotojet 16mm | 1/8" | 18 - 60 | 25 | 4 x 1.1 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016A13 | Rotojet 16mm | 1/8" | 18 - 60 | 40 | 4 x 1.3 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016AS | Rotojet 16mm with thrust | 1/8" | 18 - 60 | 20 | 4 x 0.8 | 3 x 0.8 | * | 16 x 30 | 0.02 | - | 350 |
KBR nozzles 1/4" |
|---|
|
|
|
|
|
|
|
|
|
|
|||
|
04.016B04 | Rotojet 16mm | 1/4" | 18 - 60 | 5 | 4 x 0.4 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B05 | Rotojet 16mm | 1/4" | 18 - 60 | 5 | 4 x 0.5 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B06 | Rotojet 16mm | 1/4" | 18 - 60 | 5 | 4 x 0.6 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B07 | Rotojet 16mm | 1/4" | 18 - 60 | 6 | 4 x 0.7 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B08 | Rotojet 16mm | 1/4" | 18 - 60 | 10 | 4 x 0.8 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B09 | Rotojet 16mm | 1/4" | 18 - 60 | 15 | 4 x 0.9 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B11 | Rotojet 16mm | 1/4" | 18 - 60 | 18 | 4 x 1.0 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B13 | Rotojet 16mm | 1/4" | 18 - 60 | 25 | 4 x 1.1 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016B13 | Rotojet 16mm | 1/4" | 18 - 60 | 40 | 4 x 1.1 | - | * | 16 x 30 | 0.03 | - | 350 |
|
04.016BS | Rotojet 16mm with thrust | 1/4" | 18 - 60 | 21 | 4 x 0.8 | 3 x 0.8 | * | 16 x 31 | 0.03 | - | 350 |
|
04.028A | Rotojet 28 mm | 1/4" | 18 - 60 | 10 | 4 x M4 | - | * | 28 x 56 | 0.20 | - | 350 |
KBR nozzles 3/8" |
|---|
|
|
|
|
|
|
|
|
|
|
|||
|
04.028B | Rotojet 28 mm | 3/8" | 30 - 100 | 10 | 4 x M4 | - | * | 28 x 56 | 0.15 | - | 350 |
KBR nozzles 1/2" |
|---|
|
|
|
|
|
|
|
|
|
|
|||
|
04.040A | Rotojet 40 mm | 1/2" | 70 - 150 | 20 | 4 x M6 | - | * | 40 x 80 | 0.54 | - | 350 |
|
04.040AS | Rotojet with thrust jets 40 mm | 1/2" | 70 - 150 | 40 | 4 x M6 | 3 x M6 | * | 40 x 80 | 0.40 | - | 350 |
|
04.050A | Rotojet 50 mm | 1/2" | 100 - 200 | 60 | 4 x M6 | - | - | 50 x 99 | 1.10 | - | 350 |
|
04.050AS | Rotojet with thrust jets 50 mm | 1/2" | 100 - 200 | 70 | 4 x M6 | 3 x M6 | - | 50 x 99 | 1.10 | - | 350 |
KBR nozzles 3/4" |
|---|
|
|
|
|
|
|
|
|
|
|
|||
|
04.040B | Rotojet 40 mm | 3/4" | 70 - 150 | 20 | 4 x M6 | - | * | 40 x 80 | 0.54 | - | 250 |
|
04.040AS | Rotojet 50 mm | 3/4" | 100 - 200 | 60 | 4 x M6 | - | - | 50 x 99 | 1.10 | - | 250 |
|
04.050BS | Rotojet with thrust jets 50 mm | 3/4" | 100 - 200 | 70 | 4 x M6 | 3 x M6 | - | 50 x 99 | 1.10 | - | 250 |
KBR nozzles 1" - 1 1/4" |
|---|
|
|
|
|
|
|
|
|
|
|
|||
|
04.060 | Rotojet 60 mm | 1" | 100 - 300 | 80 | 4 x M8 | 3 x M8 | * | 60 x 111 | 1.60 | - | 250 |
|
04.100A | Rotojet 100 mm | 1" | 200 - 600 | 200 | 4 x M10 | 3 x M10 | * | 100 x 175 | 7.30 | - | 250 |
|
04.100B | Rotojet 100 mm | 1 1/4" | 200 - 600 | 200 | 4 x M10 | 3 x M10 | * | 100 x 175 | 7.30 | - | 250 |
