Bulldog®



Product description
The enz® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 1mm.

Transport and water costs are noticeably reduced.

Characteristics
- Easy to handle
- The tool is practically maintenance-free

Applications
- To remove fat, roots and harder incrustations
- For operation with recycling water and fresh water

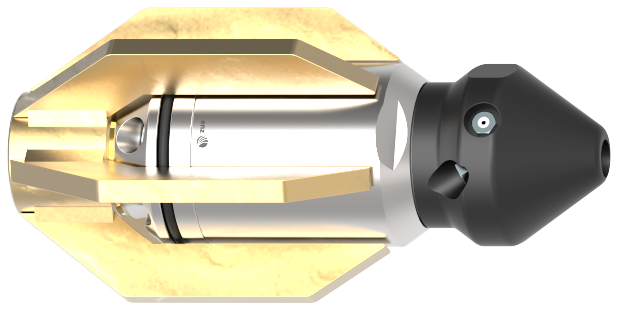

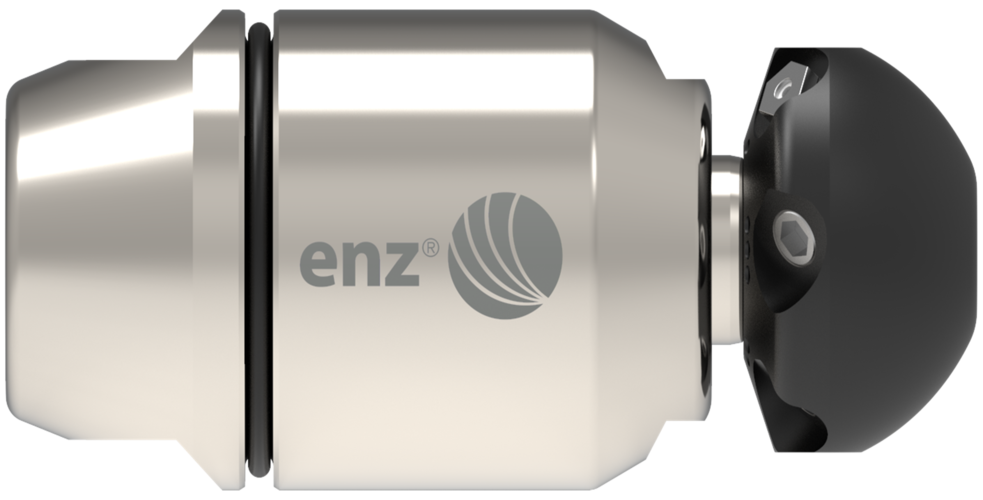

Bulldog® low flow 1/4" - 1/2"

408.037 BULLDOG Rotating Nozzle 37-2 1/2" 40 - 150 24 50°: 2 x M6 - 1 x M6 10° 38 x 89.25 0.40 ok 200
408.037A BULLDOG Rotating Nozzle 37-2 1/4" 40 - 100 24 50°: 2 x M6 - 1 x M6 10° 38 x 89.25 0.40 ok 200
408.037B BULLDOG Rotating Nozzle 37-2 1 1/4" 40 - 100 24 50°: 2 x M6 - 1 x M6 10° 38 x 89.25 0.40 ok 200

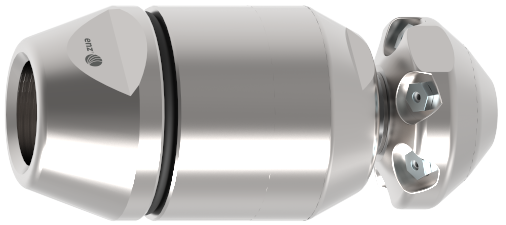

Bulldog® 1/2" - 3/4"

400.037 BULLDOG Rotating Nozzle 37mm 1/2" 40 - 200 50 30°: 6 x M6 - 1 x M6   10° 37 x 85 0.40 ok 200
400.037C BULLDOG Rotating Nozzle 37mm 3/4" 40 - 200 50 30°: 6 x M6 - 1 x M6   10° 37 x 89 0.42 ok 200
400.037S BULLDOG Rotating Nozzle 37mm 1/2" 40 - 200 90 30°: 6 x M6 30°: 6 x M6 1 x M6 30° 10° 37 x 85 0.41 ok 200

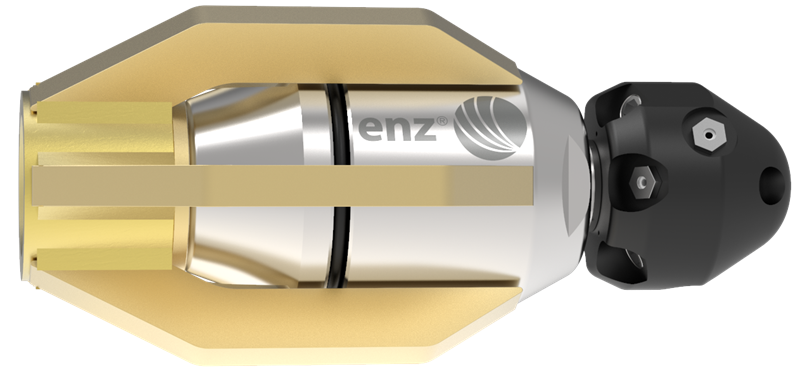

Bulldog® with skid 1/2" - 3/4"

401.037S BULLDOG Rotating Nozzle 37 mm 1/2" 62 - 200 30 80°: 3 x M6 - -   15° 59.3 x 125 0.74 ok 200
400.037C BULLDOG Rotating Nozzle 37 mm 1/2" 62 - 200 60 80°: 3 x M6 3 x M4 - 30° 15° 59.3 x 125 0.74 ok 200
404.037 BULLDOG Rotating Nozzle 37 mm 1/2" 62 - 200 50 30°: 3 x M6, 80°: 3 x M6 - -   15° 59.3 x 125 0.74 ok 200
404.037C BULLDOG Rotating Nozzle 37mm, ¾" 3/4" 62 - 200 50 30°: 3 x M6, 80°: 3 x M6 - - 30° 15° 59.3 x 125 0.74 ok 200
404.037S BULLDOG Rotating Nozzle 37 mm, ½" 1/2" 62 - 200 80 30°: 3 x M6, 80°: 3 x M6 3 x M4 -   15° 59.3 x 125 0.74 ok 200
406.037 BULLDOG Rotating Nozzle 37 mm 1/2" 62 - 200 60 30°: 6 x M6 - 2 x M6   15° + 30° 59.3 x 125 0.74 ok 200
406.037C BULLDOG Rotating Nozzle 37 mm 3/4" 62 - 200 60 30°: 6 x M6 - 2 x M6   15° + 30° 59.3 x 125 0.74 ok 200
406.037S BULLDOG Rotating Nozzle 37 mm 1/2" 62 - 200 100 30°: 6 x M6 3 x M4 2 x M6 30° 15° + 30° 59.3 x 125 0.74 ok 200

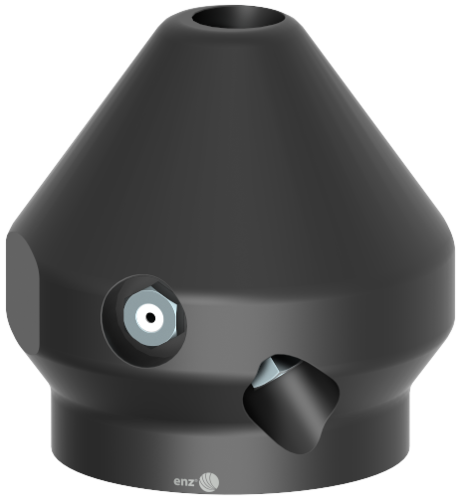

Accessory and wearing parts Bulldog® 1/4" - 3/4"

00100.03720 Skid for Bulldog 37 → 400.037 1/2" 75 - 200 60 x 110 0.15
00100.037107 Head Bulldog 1/2" 3x2 → 408.037     34 x 21 0.06
00100.03720C Skid for Bulldog 37 → 40x.037c 3/4" 75 - 200 60 x 110 0.35
00100.037101 Head Bulldog 1/2" → 400.037, 400.037C, 400.037S     34 x 21 0.00
00100.037104 Head KBR Bulldog 37 → 401.037, 401.037S, 404.037, 404.037S, 404.037C, 406.037, 406.037S, 406.037C     33 x 29.5 0.10

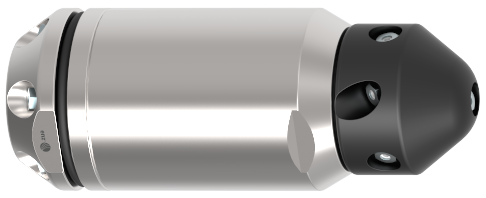

Bulldog® 3/4" - 1"

400.060A BULLDOG Rotating Nozzle 60 mm 3/4" 100 - 300 100 6 x M8 6 x M8 1 x M8 15° 60 x 153.5 2.10 ok 200
400.060B BULLDOG Rotating Nozzle 60 mm 1" 100 - 300 100 6 x M8 6 x M8 1 x M8 15° 60 x 153.5 2.10 ok 200
400.080SET100 Bulldog 80 set with 100m cage 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 206 5.77 ok 200
400.080SET150 Bulldog 80 set with 6" cage 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 260 5.77 ok 200
402.080LS100 BULLDOG 100 mm with skids 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 220 2.70 ok 200
402.080LS150 BULLDOG 150 mm with skids 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 260 5.77 ok 200
404.080HS100 BULLDOG 100 mm with skids 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 220 3.70 ok 200
404.080HS150 BULLDOG 150 mm with skids 1" 170 - 400 200 6 x M10 6 x M8 1 x M10 15° 150 x 260 5.77 ok 200

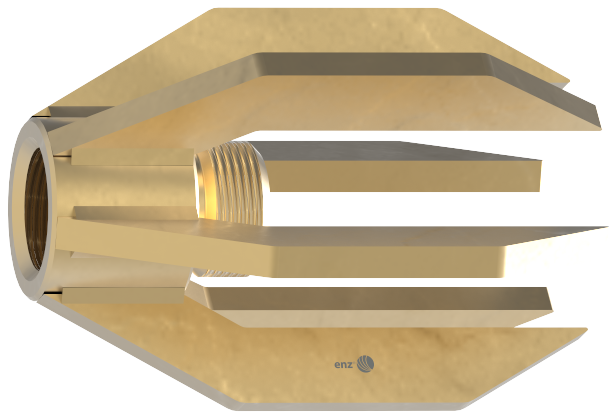

Accessory and wearing parts Bulldog® 3/4" - 1"

00100.0807 Skid guidance for Bulldog 80 / 60 →  400.060, 402.080, 404.080 1" 125 - 400 100 x 135 0.80
00100.0808 Skid guidance for Bulldog 80 / 60 → 402.080, 404.080 1" 170 - 400 150 x 180 2.87
00100.08073 Thrust stop with O-Ring and screw → 402.080, 404.080       0.04
00400.0605   Head Bulldog 60 → 400.060     50 x 42 0.32
00402.0805-4 Head HRH Bulldog 80 → 402.080     65 x 55 0.67
00404.0805-12 Head KBR Bulldog 80 → 404.080     65 x 55 0.69
100.060300S Scissors skid with steel wheels   3/4" 300 - 1100 300 - 1100 x 773 9.67 350
100.060300P Scissors skid with polyurethane wheels   3/4" 300 - 1100 300 - 1100 x 773 10.18 350
100.060300JS Scissors skid with steel wheels & hand lever   3/4" 300 - 1100 300 - 1100 x 773 9.27 350
100.060300JP Scissors skid with polyurethane wheels   3/4" 300 - 1100 300 - 1100 x 773 9.78 350
100.060300J Scissors skid with hand lever   3/4" 300 - 1100 300 - 1100 x 773 8.59 350
100.060300 Scissors skid   3/4" 300 - 1100 300 - 1100 x 773 8.99 350



Bulldog® 1" - 1 1/4"

400.101A BULLDOG Rotating Nozzle 100 mm 1" 250 - 600 200 35°: 3 x M10, 90°: 2 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
400.101B BULLDOG Rotating Nozzle 100 mm 1 1/4" 250 - 600 200 35°: 3 x M10, 90°: 2 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
401.101AS BULLDOG Rotating Nozzle 100 mm 1" 250 - 600 200 80°: 6 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
401.101BS BULLDOG Rotating Nozzle 100 mm 1 1/4" 250 - 600 200 80°: 6 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
404.101AS BULLDOG Rotating Nozzle 100 mm 1" 250 - 600 200 80°: 3 x M10, 45°: 3 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200
404.101BS BULLDOG Rotating Nozzle 100 mm 1 1/4" 250 - 600 200 80°: 3 x M10, 45°: 3 x M10 6 x M10 1 x M10 15° 130 x 260 7.20 ok 200

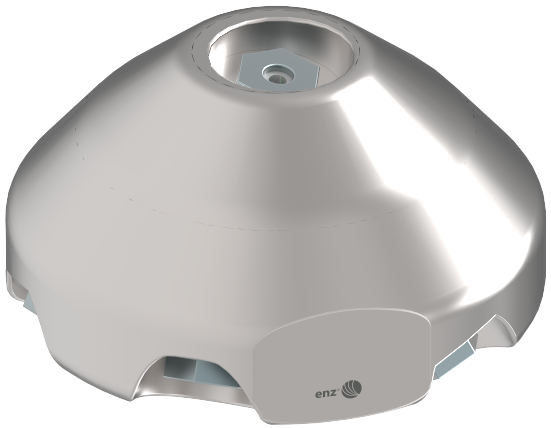

Accessory and wearing parts Bulldog® 1" - 1 1/4"

100.1019A BULLDOG Skids for 400.100 → 400.101 1 1/4" m -> 1" f 250 - 800 200 x 290 3.80
100.1019B BULLDOG Skids for 400.100 → 400.101 1 1/4" m -> 1 1/4" f 250 - 800 200 x 290 4.86
00400.1014 Head KBR Bulldog 100 → 400.101     79 x 78 1.20
00400.1015 Head RGS Bulldog 100 → 401.101, 404.101     78 x 78 1.07
100.10073 Thrust stop with O-Ring and screw → 401.101AS/BS       0.04
100.1004RA Cage Ø400   1 1/4" m -> 1" f 400 - 1000 380 x 580 10.00
100.1004RAW Cage Ø400   1 1/4" m -> 1" f 400 - 1000 340 x 500 9.60
100.1004RB Cage Ø400   1 1/4" m -> 1 1/4" f 400 - 1000 380 x 580 10.00
100.1004RBW Cage Ø400   1 1/4" m -> 1 1/4" f 400 - 1000 340 x 500 9.60
