Rotopuls vibration nozzles



Product description
The enz® rotating nozzle is provided with an eccentrically supported rotor, which produces very fast vibrations and pulsating jets. The resulting pulsations become as strong that deposits up to 10cm thickness are disintegrated.

Thanks to the application of the rotopuls nozzle, the more expensive work with the cutting tools or with the chain flail head can be avoided in many cases.

Important: Rotopuls nozzles develop strong hydraulic impacts and vibrations. This can possibly cause damage in some sort of pipes (e.g. earthenware pipes, thinwalled plastic pipes or badly-bedded PVC pipes).

Applications
- The Rotopuls nozzles are conceived to remove middle-hard deposits in pipes of plastic, steel or concrete

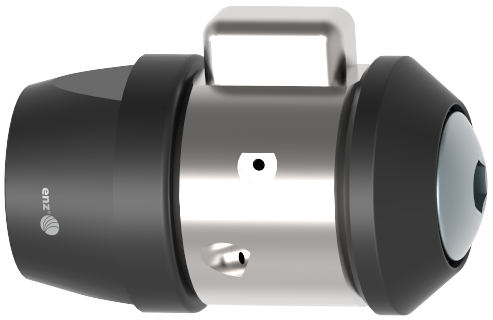

Rotopuls 16 1/8" - 1/4"

04.016AE08 ROTOPULS vibrating nozzle 16mm 1/8" 25 - 90 15 45°: 2 x 0.80, 90°: 2 x 0.80 - * 22 x 29 0.03 - 350
04.016AE10 ROTOPULS vibrating nozzle 16mm 1/8" 25 - 90 15 45°: 2 x 1.00, 90°: 2 x 1.00 - * 22 x 29 0.03 - 350
04.016AES08 ROTOPULS vibrating nozzle 16mm 1/8" 25 - 90 26 45°: 2 x 0.80, 90°: 2 x 0.80 3 x 0.80 * 22 x 31 0.03 - 350
04.016AES10 ROTOPULS vibrating nozzle 16mm 1/8" 25 - 90 40 45°: 2 x 1.00, 90°: 2 x 1.00 3 x 0.80 * 22 x 31 0.03 - 350
04.016BE08 ROTOPULS vibrating nozzle 16mm 1/4" 25 - 90 15 45°: 2 x 0.80, 90°: 2 x 0.80 - * 22 x 29 0.03 - 350
04.016BE10 ROTOPULS vibrating nozzle 16mm 1/4" 25 - 90 15 45°: 2 x 1.00, 90°: 2 x 1.00 - * 22 x 29 0.03 - 350
04.016BES08 ROTOPULS vibrating nozzle 16mm 1/4" 25 - 90 26 45°: 2 x 0.80, 90°: 2 x 0.80 3 x 0.80 * 22 x 31 0.03 - 350
04.016BES10 ROTOPULS vibrating nozzle 16mm 1/4" 25 - 90 40 45°: 2 x 1.00, 90°: 2 x 1.00 3 x 0.80 * 22 x 31 0.03 - 350



Rotopuls nozzles 1/4" - 1 1/4"

01.028AE ROTOPULS vibrating nozzle 28 mm 1/4" 30 - 100 10 2 x M4 3 x M4 * 28 x 56 0.19 - 350
02.028AE ROTOPULS vibrating nozzle 28 mm 1/4" 30 - 100 10 2 x M4 - - 28 x 56 0.18 - 350
02.028BE ROTOPULS vibrating nozzle 28 mm 3/8" 30 - 100 10 2 x M4 - - 28 x 61 0.15 - 350
04.040AE ROTOPULS vibrating nozzle 1/2" 70 - 150 20 4 x M4 3 x M6 * 40 x 81 0.52 - 350
04.050AE ROTOPULS vibrating nozzle 50 mm 1/2" 100 - 200 70 4 x M6 3 x M6 - 50 x 96 0.98 - 350
04.050BE ROTOPULS vibrating nozzle 50 mm 3/4" 100 - 300 70 4 x M6 3 x M6 - 50 x 99 0.98 - 250
04.060EK ROTOPULS vibrating nozzle 60 mm 1" 100 - 300 100 4 x M6 3 x M8 * 60 x 111 1.60 - 250
04.100AE ROTOPULS vibrating nozzle 100 mm 1" 200 - 600 200 4 x M10 3 x M10 * 100 x 175 7.20 - 250
04.100BE ROTOPULS vibrating nozzle 100 mm 1 1/4" 200 - 600 200 4 x M10 3 x M10 * 100 x 175 7.20 - 250



Rotopuls nozzles 3/8" - 1/2"

01.030AE ROTOPULS vibrating nozzle Ø 30 mm 1/4" 40 - 100 10 2 x M4 3 x M4 - 30 x 49 0.15 - 350
01.034AE ROTOPULS vibrating nozzle 34 mm 3/8 45 - 150 20 2 x M4 3 x M4 * 34 x 57.5 0.22 - 350
01.034BE ROTOPULS vibrating nozzle 34 mm 1/2" 45 - 150 20 2 x M4 3 x M4 * 34 x 57.5 0.21 - 350
04.044AE ROTOPULS vibrating nozzle 44 mm 1/2" 70 - 150 20 4 x M4 3 x M6 * 44 x 91 0.60 - 350



Turbopuls 1/2" - 3/4"

410.060A Turbopuls Ø 60 1/2" 100 - 200 60 1 x M6 3 x M8 - 64 x 180 2.40 ok 200
410.060B Turbopuls Ø 60 3/4" 100 - 200 60 1 x M6 3 x M8 - 64 x 180 2.40 ok 200
410.080A Turbopuls 80 mm 1/2" 150 - 300 80 1 x M6 3 x M8 - 78 x 210 4.30 ok 200
410.080A-G Turbopuls with big head 100 mm 1/2" 150 - 300 80 1 x M6 3 x M8 - 100 x 210 5.20 ok 200
410.080B Turbopuls 80 mm 3/4" 150 - 300 80 1 x M6 3 x M8 - 78 x 210 4.30 ok 200
410.080B-G Turbopuls with big head 100 mm 3/4" 150 - 300 80 1 x M6 3 x M8 - 100 x 210 5.20 ok 200



Turbopuls 1" - 1 1/4"

410.120A Turbopuls 120 mm HI 1" 200 - 1000 150 1 x M8 6 x M10 - 120 x 320 14.50 ok 200
410.120A-W Turbopuls 120 mm 1" 200 - 1000 150 1 x M8 6 x M10 - 120 x 320 14.50 ok 200
410.120B Turbopuls 120 mm HI 1 1/4" 200 - 1000 150 1 x M8 6 x M10 - 120 x 320 14.50 ok 200
410.120B-W Turbopuls 120 mm 1 1/4" 200 - 1000 150 1 x M8 6 x M10 - 120 x 320 14.50 ok 200



Accessory and wearing parts Turbopuls

410.1209 Twinholder for 410.120 1" / 1 1/4" ab / from / de 400 2 x 150 360 x 700 7.00 20
00410.1205 Impact head standard       120 x 70 2.10
00410.12051 Impact head soft       120 x 70 2.30
004.0444E Centre spire for ROTOPULS 04.044AE       12 x 30 0.02
00410.08010 Pointed center for Turbopuls Ø 80       16 x 60 0.07
00410.12010 Pointed center for Turbopuls Ø 120mm       20 x 70 0.12
95.F100M075150 HP Textile-Hose 3/4" m - 1" f     1500 1.44
