Guiding nozzles standard
| Product description |
|---|
|
The enz® guiding nozzles standard were developed specifically for targeted cleaning of pipe inlets. They are used in searching for connections in ground lines and can thus prevent the need for cleaning via a household connection, for example. Entrance into the connection is made using a head nozzle on a flexible hose.
Applications - For removal of loose rubble stone, gravel and soft deposits |

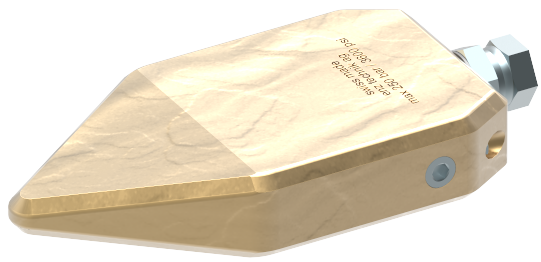

Flounder 1/2" - 1 1/4" |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
 |
70.050 | Flounder | 1/2" | 150 - 250 | 60 | S1: 2 x M8, S2: 2 x M8 | * | S1: 15°, S2: 7.5° | 195 x 90 x 36 | 2.54 | ok | 250 |
|
70.075 | Flounder | 3/4" | 200 - 400 | 100 | S1: 2 x M8, S2: 4 x M8 | * | S1: 15°, S2: 0° | 195 x 100 x 50 | 3.20 | ok | 250 |
|
70.100 | Flounder | 1" | 300 - 600 | 200 | S1: 2 x M10, S2: 2 x M10, S3: 4 x M10 | * | S1: 15°, S2: 7.5°, S3: 0° | 340 x 160 x 56 | 11.00 | ok | 250 |
|
70.125 | Flounder | 1 1/4" | 400 - 800 | 250 | S1: 2 x M10, S2: 4 x M10, S3: 4 x M10 | * | S1: 15°, S2: 7.5°, S3: 0° | 380 x 180 x 70 | 19.00 | ok | 250 |
