Pointed nozzles



Product description
Concentrated powerful advance by means of 4 front jet nozzles. The sharp edges cut, break and penetrate through every kind of blockage. Made of wear-resistant, hardened steel. All nozzles from art. 60.038 onward are provided with ceramic inserts.

Because of this, the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer.

Applications
- Penetrating of completely clogged pipes
- Opening of interlaced roots
- Opening of frozen pipelines
- Flushing out at hydraulic thrust boring

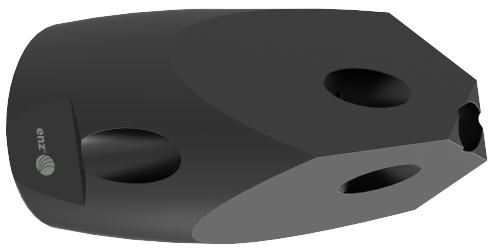

Silverline pointed nozzles 1/8" - 3/4"

60.012SL15 Pointed nozzle 15 l/min 100 bar 1/8" 20 - 40 15 3 x 0.95 4 x 0.50 25° 15° 16 x 25 0.02 - 350
60.025SL15 Pointed nozzle 15 l/min 100 bar 1/4" 22 - 50 15 3 x 0.90 4 x 0.60 25° 15° 20 x 33 0.03 - 350
60.025SL30 Pointed nozzle 30 l/min 100 bar 1/4" 22 - 50 30 3 x 1.35 4 x .070 25° 15° 20 x 33 0.03 - 350
60.038SL40 Pointed nozzle 40 l/min 100 bar 3/8" 28 - 100 40 3 x 1.45 4 x 0.80 20° 15° 25 x 40 0.06 - 350
60.038SL60 Pointed nozzle 60 l/min 100 bar 3/8" 28 - 100 60 3 x 1.85 4 x 0.95 20° 15° 25 x 40 0.06 - 350
60.050SL100 Pointed nozzle 100 l/min 100 bar 1/2" 40 - 150 100 3 x 2.40 4 x 1.10 25° 15° 32 x 55 0.10   350
60.050SL40 Pointed nozzle 40 l/min 100 bar 1/2" 40 - 150 40 3 x 1.50 4 x 0.80 25° 15° 32 x 55 0.14   350
60.050SL70 Pointed nozzle 70 l/min 100 bar 1/2" 40 - 150 70 3 x1.80 4 x 0.90 25° 15° 32 x 55 0.14   350
60.075SL160 Pointed nozzle 160 l/min 100 bar 3/4" 60 - 250 160 3 x 2.70 4 x 1.80 25° 15° 38 x 80 0.32   350
60.075SL200 Pointed nozzle 200 l/min 100 bar 3/4" 60 - 250 200 3 x 3.10 4 x 1.90 25° 15° 38 x 80 0.32 - 350

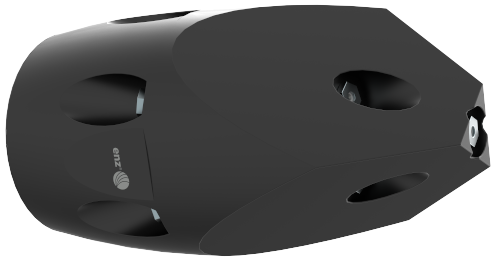

Pointed nozzles 3/8" - 1 1/4"

60.038 Pointed nozzle 3/8" 28 - 100 30 3 x M4 4 x M4 20° 15° 26 x 44 0.08 ok 350
60.050 Pointed nozzle 1/2" 40 - 150 50 3 x M6 4 x M4 25° 15° 32 x 55 0.20 ok 350
60.075 Pointed nozzle 3/4" 60 - 250 100 3 x M6 4 x M4 25° 15° 38 x 80 0.32 ok 350
60.100 Pointed nozzle 1" 100 - 300 150 6 x M10 4 x M6 25° 15° 48 x 90 0.55 ok 250
60.100L Pointed nozzle Ø 68 execution long 1" 150 - 400 200 6 x M10 4 x M8 25° 15° 68 x 187 2.70 ok 250
60.100L80 Pointed nozzle Ø 80 execution long 1" 150 - 500 200 6 x M10 4 x M8 10° 15° 79 x 281 4.68 ok 250
60.125 Pointed nozzle 1 1/4" 150 - 400 200 6 x M6 4 x M6 20° 15° 58 x 100 0.96 ok 250
60.125L Pointed nozzle execution long 1 1/4" 200 - 800 300 6 x M10 4 x M8 10° 15° 98 x 258 8.40 ok 250

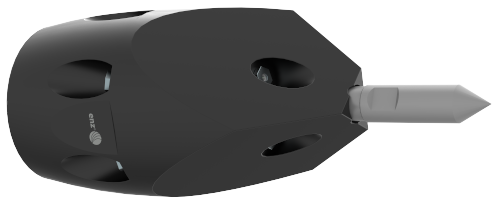

Pointed nozzles with centre spire 1/2" - 1 1/4"

61.050 Pointed nozzle with centre spire 1/2" 40 - 150 50 3 x M6 3 x M4 25° 15° 38 x 82 0.15 ok 350
61.075 Pointed nozzle with centre spire 3/4" 60 - 250 100 3 x M6 3 x M4 25° 15° 38 x 104.5 0.33 ok 350
61.100 Pointed nozzle with centre spire 1" 100 - 300 150 6 x M6 3 x M6 25° 15° 48 x 123.5 0.56 ok 350
61.100L Pointed nozzle Ø 68 execution long 1" 150 - 400 200 6 x M10 3 x M8 25° 15° 68 x 220 2.72 ok 350
61.100L80 Pointed nozzle Ø 80 execution long 1" 150 - 500 200 6 x M10 3 x M8 10° 15° 79 x 260 4.71 ok 350
61.125 Pointed nozzle 1 1/4" 150 - 400 200 6 x M6 3 x M6 20° 15° 58 x 133 0.94 ok 350
61.125L Pointed nozzle execution long 1 1/4" 200 - 800 300 6 x M10 3 x M8 10° 15° 98 x 300 8.43 ok 350

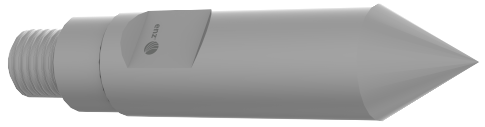

Accessory and wearing parts pointed nozzles

0061.1004 Centre spire for Pointed Nozzle 60.100 M6 50 - 200 0.12
0061.1254 Centre spire for Pointed Nozzle 60.100L80, M8 50 - 200 0.12
0061.0504 Centre spire for Pointed Nozzle 60.050 M4 50 - 200 0.12
