Standard cleaning nozzles
| Product description |
|---|
|

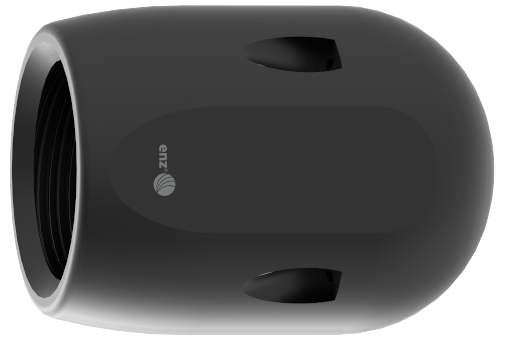

Made of wear-resistant, hardened steel, provided with front jet insert and blind plug (interchangeable). Angle of jet backwards, sturdy wall thickness, long service life and a minimum of wear and tear.
All nozzles from art.30.038 onward are provided with steelceramic inserts. Because of this, the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer. Applications - Appropriate for removal of sludge deposits and cloggings |
Silverline standard cleaning nozzles 1/8" |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
 |
30.012SL10 | Standard nozzle 10 l/min 100 bar | 1/8" | 20-100 | 10 | 4 x 0.75 | - | 25° | 13 x 18 | 0.01 | - | 350 | |
|
30.012SL10F | Standard nozzle w. front jet 10 l/min 100 bar | 1/8" | 20 - 100 | 10 | 4 x 0.75 | 1 x 0.60 | 25° | 0° | 13 x 18 | 0.01 | - | 350 |
|
30.012SL15 | Standard nozzle 15 l/min 100 bar | 1/8" | 20 - 100 | 15 | 4 x 0.90 | - | 25° | 13 x 18 | 0.01 | - | 350 | |
|
30.012SL15F | Standard nozzle w. front jet 15 l/min 100 bar | 1/8" | 20 - 100 | 15 | 4 x 0.90 | 1 x 0.60 | 25° | 0° | 13 x 18 | 0.01 | - | 350 |
|
30.012SL27 | Standard nozzle 27 l/min 100 bar | 1/8" | 20 - 100 | 27 | 4 x 1.20 | - | 25° | 13 x 18 | 0.01 | - | 350 | |
|
30.012SL30F | Standard nozzle w. front jet 30 l/min 100 bar | 1/8" | 20 - 100 | 30 | 4 x 1.10 | 1 x 1.10 | 25° | 0° | 13 x 18 | 0.01 | - | 350 |
Silverline standard cleaning nozzles 1/4" |
|---|
|
|
|
|
|
|
|
|
|
|
|
|||
|
30.0253SL10 | Standard nozzle 10 l/min 100 bar | 1/4" | 30 - 110 | 10 | 3 x 0.85 | - | 25° | - | 18 x 20 | 0.02 | - | 350 |
|
30.0253SL10F | Standard nozzle w. front jet 10 l/min 100 bar | 1/4" | 30 - 110 | 10 | 3 x 0.80 | 1 x 0.80 | 25° | 0° | 18 x 20 | 0.02 | - | 350 |
|
30.0253SL15 | Standard nozzle 15 l/min 100 bar | 1/4" | 30 - 110 | 15 | 3 x 1.10 | - | 25° | - | 18 x 20 | 0.02 | - | 350 |
|
30.0253SL15F | Standard nozzle w. front jet 15 l/min 100 bar | 1/4" | 30 - 110 | 15 | 3 x 1.00 | 1 x 0.80 | 25° | 0° | 18 x 20 | 0.02 | - | 350 |
|
30.0253SL30 | Standard nozzle 30 l/min 100 bar | 1/4" | 30 - 110 | 30 | 3 x 1.55 | - | 25° | - | 18 x 20 | 0.02 | - | 350 |
|
30.0253SL30F | Standard nozzle w. front jet 30 l/min 100 bar | 1/4" | 30 - 110 | 30 | 3 x 1.55 | 1 x 0.80 | 25° | 0° | 18 x 20 | 0.02 | - | 350 |
|
30.0256SL30 | Standard nozzle 30 l/min 100 bar | 1/4" | 30 - 110 | 30 | 6 x 1.10 | - | 25° | - | 18 x 20 | 0.02 | - | 350 |
|
30.0256SL30F | Standard nozzle w. front jet 30 l/min 100 bar | 1/4" | 30 - 110 | 30 | 6 x 1.00 | 1 x 0.80 | 25° | 0° | 18 x 20 | 0.02 | - | 350 |
|
30.0256SL40 | Standard nozzle 40 l/min 100 bar | 1/4" | 30 - 110 | 40 | 6 x 1.20 | - | 25° | - | 18 x 20 | 0.02 | - | 350 |
|
30.0256SL40F | Standard nozzle w. front jet 40 l/min 100 bar | 1/4" | 30 - 110 | 40 | 6 x 1.20 | 1 x 0.80 | 25° | 0° | 18 x 20 | 0.02 | - | 350 |
Silverline standard cleaning nozzles 3/8" |
|---|
|
|
|
|
|
|
|
|
|
|
|
|||
|
30.038SL40 | Standard nozzle 40 l/min 100 bar | 3/8" | 40 - 150 | 40 | 6 x 1.30 | - | 25° | - | 25 x 24 | 0.06 | - | 350 |
|
30.038SL40F | Standard nozzle w. front jet 40 l/min 100 bar | 3/8" | 40 - 150 | 40 | 6 x 1.30 | 1 x 0.60 | 25° | 0° | 25 x 24 | 0.06 | - | 350 |
|
30.038SL60 | Standard nozzle 60 l/min 100 bar | 3/8" | 40 - 150 | 60 | 6 x 1.50 | - | 25° | - | 25 x 24 | 0.06 | - | 350 |
|
30.038SL60F | Standard nozzle w. front jet 60 l/min 100 bar | 3/8" | 40 - 150 | 60 | 6 x 1.50 | 1 x 0.80 | 25° | 0° | 25 x 24 | 0.06 | - | 350 |
Silverline standard cleaning nozzles 1/2" |
|---|
|
|
|
|
|
|
|
|
|
|
|
|||
|
30.050SL100 | Pipe nozzle 100 l/min 100 bar | 1/2" | 50 - 200 | 100 | 6 x 1.9 | - | 30° | - | 30 x 27 | 0.12 | - | 350 |
|
30.050SL100F | Pipe nozzle 100 l/min 100 bar | 1/2" | 50 - 200 | 110 | 6 x 1.9 | 1 x 1.5 | 30° | - | 30 x 27 | 0.12 | - | 350 |
|
30.050SL40 | Pipe nozzle 40 l/min 100 bar | 1/2" | 50 - 200 | 40 | 6 x 1.2 | - | 30° | - | 30 x 27 | 0.12 | - | 350 |
|
30.050SL40F | Pipe nozzle 40 l/min 100 bar | 1/2" | 50 - 200 | 50 | 6 x 1.2 | 1 x 1.1 | 30° | - | 30 x 27 | 0.10 | - | 350 |
|
30.050SL70 | Pipe nozzle 70 l/min 100 bar | 1/2" | 50 - 200 | 70 | 6 x 1.6 | - | 30° | - | 30 x 27 | 0.08 | - | 350 |
|
30.050SL70F | Pipe nozzle 70 l/min 100 bar | 1/2" | 50 - 200 | 80 | 6 x 1.6 | 1 x 1.4 | 30° | - | 30 x 27 | 0.08 | - | 350 |
|
35.050SL100 | Pipe nozzle 100 l/min 100 bar | 1/2" | 50 - 200 | 100 | 6 x 1.7 | 4 x 1.3 | 30° | 15° | 30 x 27 | 0.10 | - | 350 |
|
35.050SL40 | Pipe nozzle 40 l/min 100 bar | 3/8" | 50 - 200 | 40 | 6 x 1.1 | 3 x 1.00 | 30° | 15° | 30 x 27 | 0.10 | - | 350 |
|
35.050SL70 | Pipe nozzle 70 l/min 100 bar | 3/8" | 50 - 200 | 70 | 6 x 1.4 | 4 x 1.1 | 30° | 15° | 30 x 27 | 0.10 | - | 350 |
Standard cleaning nozzles 3/8" - 1 1/4" |
|---|
|
|
|
|
|
|
|
|
|
|
|
|||
|
30.038 | Nozzle for pipe cleaning | 3/8" | 40 - 150 | 10 | 6 x M4 | 1 x M4 | 30° | - | 25 x 39 | 0.04 | ok | 350 |
|
30.050 | Nozzle for pipe cleaning | 1/2" | 50 - 200 | 30 | 6 x M6 | 1 x M6 | 30° | - | 30 x 47 | &0.12 | ok | 350 |
|
30.050EI | Egg nozzle | 1/2" | 50 - 200 | 30 | 6 x M6 | 1 x M6 | 25° | - | 40 x 50 | 0.25 | ok | 350 |
|
30.075 | Nozzle for pipe cleaning | 3/4" | 70 - 250 | 50 | 8 x M6 | 1 x M6 | 30° | - | 38 x 60 | 0.10 | ok | 350 |
|
30.100 | Nozzle for pipe cleaning | 1" | 150 - 350 | 120 | 8 x M8 | 1 x M8 | 30° | - | 60 x 83 | 0.70 | ok | 250 |
|
30.100SP20 | Egg nozzle 20° | 1" | 150 - 350 | 120 | 8 x M8 | 1 x M8 | 20° | - | 60 x 83 | 0.71 | ok | 250 |
|
30.125 | Nozzle for pipe cleaning | 1 1/4" | 200 - 400 | 200 | 8 x M8 | 1 x M8 | 30° | - | 68 x 105 | 1.37 | ok | 250 |
|
35.038 | Nozzle with 4 front jets | 3/8" | 40 - 150 | 18 | 6 x M4 | 4 x M4 | 30° | 15° | 25 x 40 | 0.07 | ok | 350 |
|
35.050 | Nozzle with 4 front jets | 1/2" | 50 - 200 | 50 | 6 x M6 | 3 x M4, 1 x M6 | 30° | 15° | 30 x 47 | 0.12 | ok | 350 |
|
35.050EI | Egg nozzle with 4 front jets | 1/2" | 50 - 200 | 50 | 6 x M6 | 4 x M4 | 25° | 15° | 40 x 50 | 0.25 | ok | 350 |
|
35.100 | Nozzle with 4 front jets | 1" | 150 - 350 | 120 | 8 x M8 | 4 x M8 | 30° | 15° | 60 x 83 | 0.71 | ok- | 250 |
