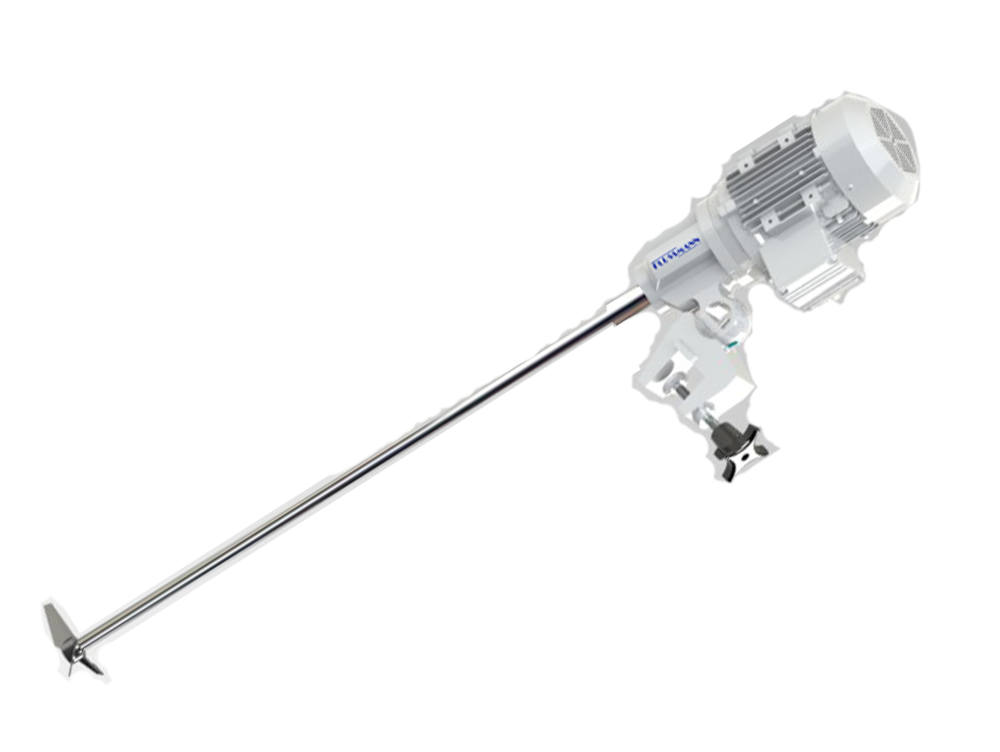

FAP PORTABLE AGITATORS


The FAP series agitators are vertical agitators with clamp. They can be used in processes of mixing, dissolution and dispersion whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical or chemical industries. These agitators are fixed to the wall of the tank by means of a clamp, thanks to the joint, they can be inclined to the required position.



Materials

Parts in contact with the product: AISI 316L
V-ring and retainer NBR
Bearing support Aluminum

Options

Double flushed mechanical seal.
V-ring and retainer: FPM.
One-piece shaft.
Shaft and propeller lined with plastic material for use with corrosive products.
Saw tooth propeller. Welded propeller with Ra ≤ 0,4 μm surface finish.
Motor shroud.
Motors with other protections.
Motors: 950 rpm or 750 rpm.
