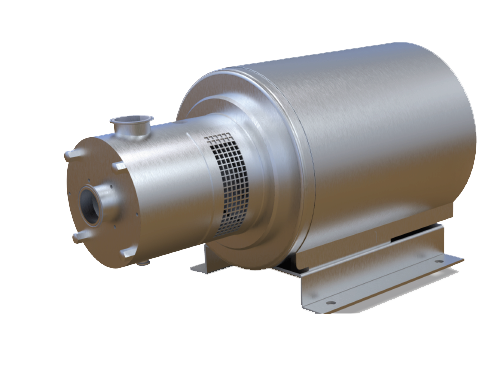

FIM INLINE MIXERS


The FIM series of the inline high shear mixers offers a possibility to pump, disperse, homogenize and emulsify products with one and the same equipment. Numerous chemical, food-processing, pharmaceutical and cosmetics production processes require this system due to the lack of space inside the tanks for vertical or tank bottom mixers.



Materials

Parts in contact with the product : AISI 316L
Other stainless steel parts : AISI 304
Mechanical seal : C / SiC / EPDM
Gaskets : EPDM
Surface finish : Ra ≤ 0.8μm
Options

Disintegrating head. Fine screen head.
Cooled or pressurised mechanical seal.
Connections: DIN 11851, SMS, flanges, etc.
Baseplate with antivibration legs. Trolley with/without control panel.
Mirror polish Ra < 0.5 μm for the pharmaceutical applications. Other motor protections.
