Pump Units

<<

High-pressure pumps and units

Hammelmann high-pressure pumps and units are designed for continuous operation and heavy-duty industrial use. The performance and results are determined by the operating pressure and flow rate, and a range of different combination options are available according to your individual requirements. Together with our customers, we develop suitable solutions for the corresponding application, whether stationary or mobile or with diesel or electric motors.






Operating pressure up to 4000 bar

Whatever your special application, our portfolio of high-pressure pumps will contain the right solution. Special power ranges and flexible configurations allow for unsurpassed versatility, including using a gearbox for saving energy and targeted power adjustment, for example.

Performance data:
Operating pressure up to 4000 bar
Volume flows up to 3000 liters
Drive power up to 1100 kW



High-pressure pumps for industrial applications

Hammelmann high-pressure pumps are available in a range of different performance classes. Depending on the application area, this ensures that you have the ideal solution at your disposal and can work in an energy-efficient and cost-efficient way. Discover the wealth of options on offer in our overview.

Overview Of Industrial High-pressure Pumps

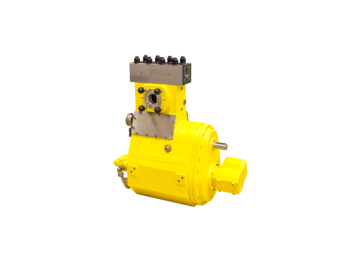

HDP 20 V

up to 3800 bar
2,2 – 103 l/min
up to 30 kW

>> Data Sheet

HDP 30

up to 3800 bar
2,2 – 103 l/min
up to 30 kW

>> Data Sheet

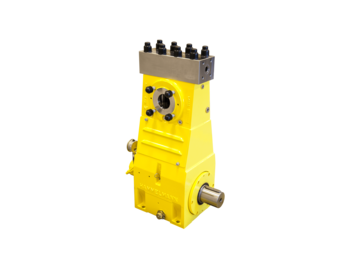

HDP 40

up to 3800 bar
5,5 – 155 l/min
up to 45 kW

>> Data Sheet

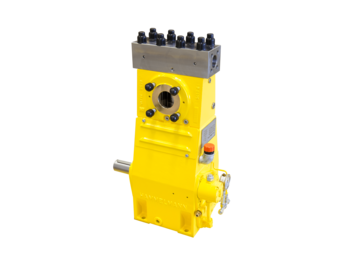

HDP 70

up to 3800 bar
7,2 – 246 l/min
up to 75 kW

>> Data Sheet

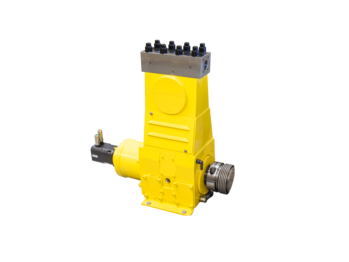

HDP 70 V

up to 3800 bar
5,5 – 155 l/min
up to 45 kW

>> Data Sheet

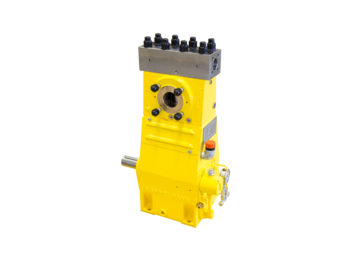

HDP 80 (FOR AQUAJET® 08 UNIT)

up to 2500 bar
17,4 l/min
up to 80 kW

>> Data Sheet

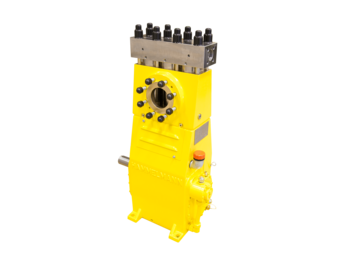

HDP 140

up to 4000 bar
13 – 343 l/min
up to 140 kW

>> Data Sheet

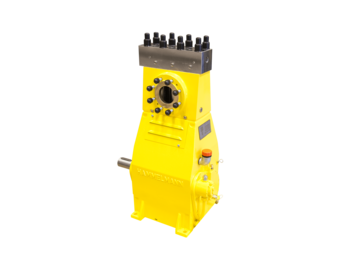

HDP 200

up to 4000 bar
20 – 489 l/min
up to 200 kW

>> Data Sheet

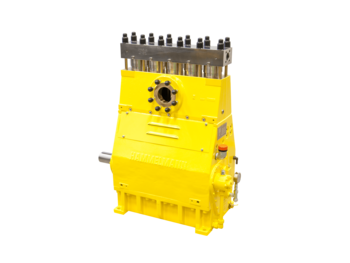

HDP 300

up to 3200 bar
33 – 1069 l/min
up to 300 kW

>> Data Sheet

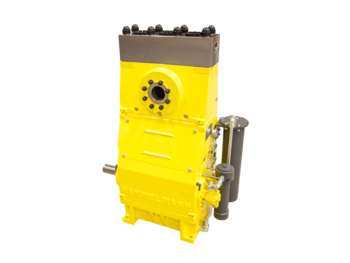

HDP 400

up to 3000 bar
45 – 1289 l/min
up to 400 kW

>> Data Sheet

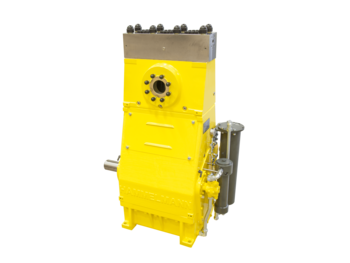

HDP 500

up to 3000 bar
52 – 1280 l/min
up to 500 kW

>> Data Sheet

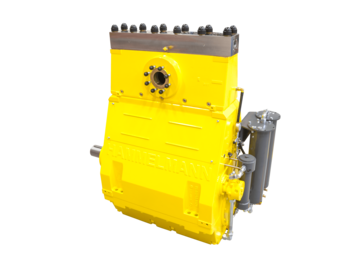

HDP 800

up to 3000 bar
87 – 2133 l/min
up to 800 kW

>> Data Sheet

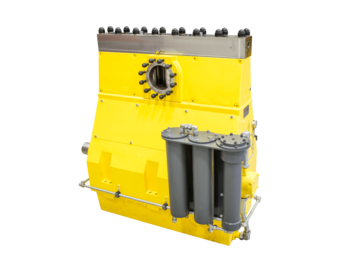

HDP MC

up to 3000 bar
126 – 2987 l/min
up to 1100 kW

>> Data Sheet

Overview Of Horizontal Pumps And Sewer Cleaning Pumps

HDP 146 L / S


Operating pressure: 160 - 230 bar
Flow rate: 270 - 462 l/min
Drive power: up to 135 kW

Seal system: Packages

Horizontal design (HDP 146 L), Vertical design (HDP 146 S)

>> Data Sheet

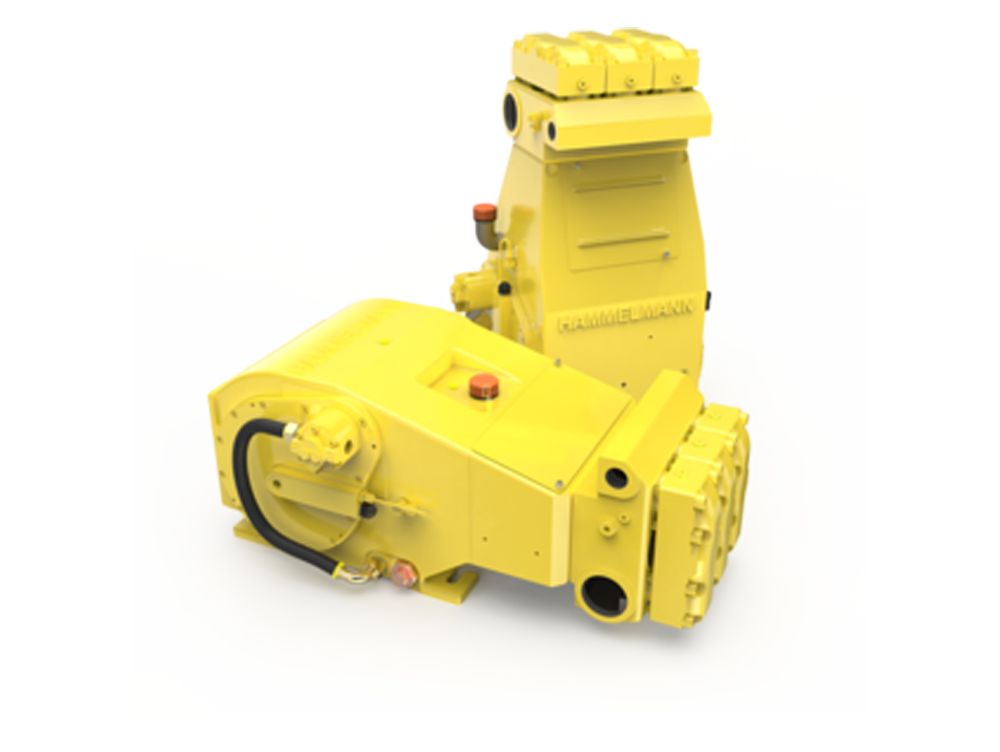

HDP 196 L / S


Operating pressure: 160 - 210 bar
Flow rate: 386 - 605 l/min
Drive power: up to 180 kW

Seal system: Packages

Horizontal design (HDP 196 L), Vertical design (HDP 196 S)

>> Data Sheet
