High-pressure valves

PROVALVE forged steel high-pressure valves are the ideal solution for many critical applications (e.g. steam parameters of up to 625 °C and 365bar). Only optimised designs can withstand the fast start-up and shut-down processes required today and the resultant high loads.

For high-pressure chemicals and petrochemicals PROVALVE supplies forged steel high-pressure valves with bolted cover flanges made of multiple special materials.

PROVALVE develops, calculates, machines, assembles and inspects valves based on optimum compliance with the respective operating conditions or the conditions as per ASME.

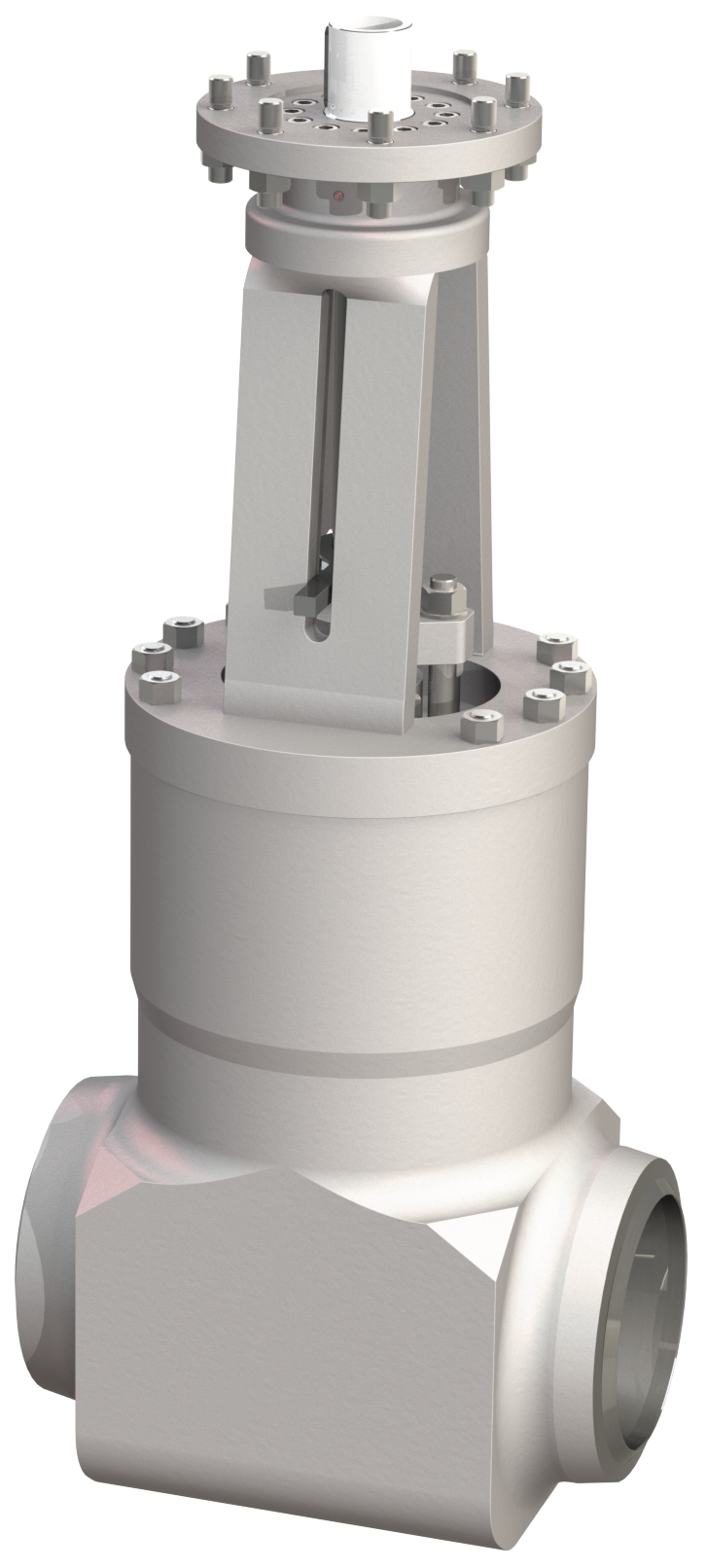

  1. Gate valves
  2. Gate valves with self-sealing cover closures or with bolted covers


    1. made of forged steel
    2. with wedge plates
    3. ASME class 900 – 4500 / PN160 - 630
    4. NPS 2" – 36" / DN50 – 900
    5. as per ASME or DIN/EN standards
    6. with weld ends and flange
    7. for temperatures of -196 °C to 650 °C

    Variants:


    1. Cast version
    2. Parallel plates

    Actuation:


    1. Hand wheel or gear unit
    2. Electric drive
    3. Hydraulic drive
    4. Pneumatic drive

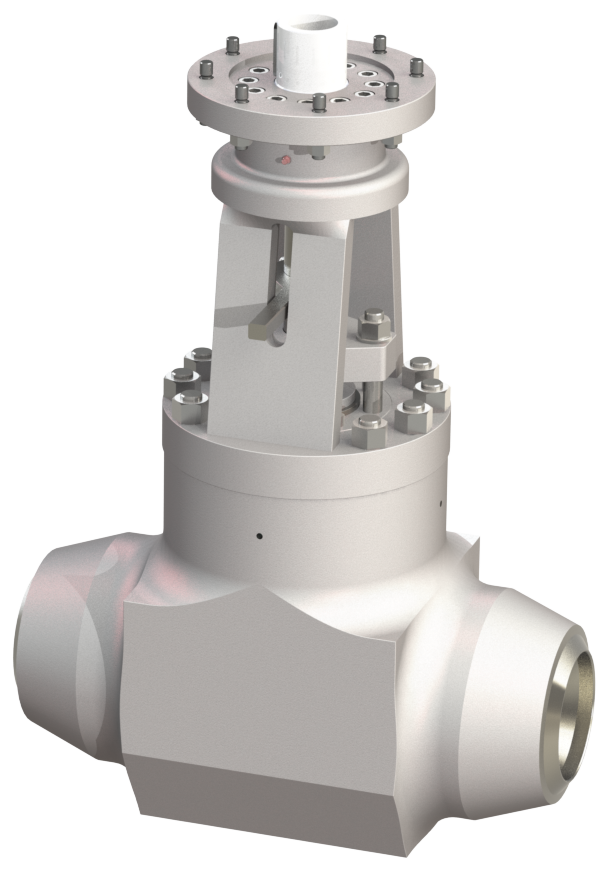

  3. Valves
  4. Shut-off valves with self-sealing cover closures or with bolted covers


    1. made of forged steel
    2. ASME class 900 – 4500 / PN160 - 630
    3. NPS 2" – 20" / DN50 – 500
    4. as per ASME or DIN/EN standards
    5. with weld ends and flange
    6. for temperatures of -196 °C to 650 °C

    Variants:


    1. Y-shape
    2. Angular shape
    3. Regulating cone
    4. Cast version on request
    5. Lockable non-return valve

    Actuation:


    1. Hand wheel or gear unit
    2. Electric drive
    3. Hydraulic drive

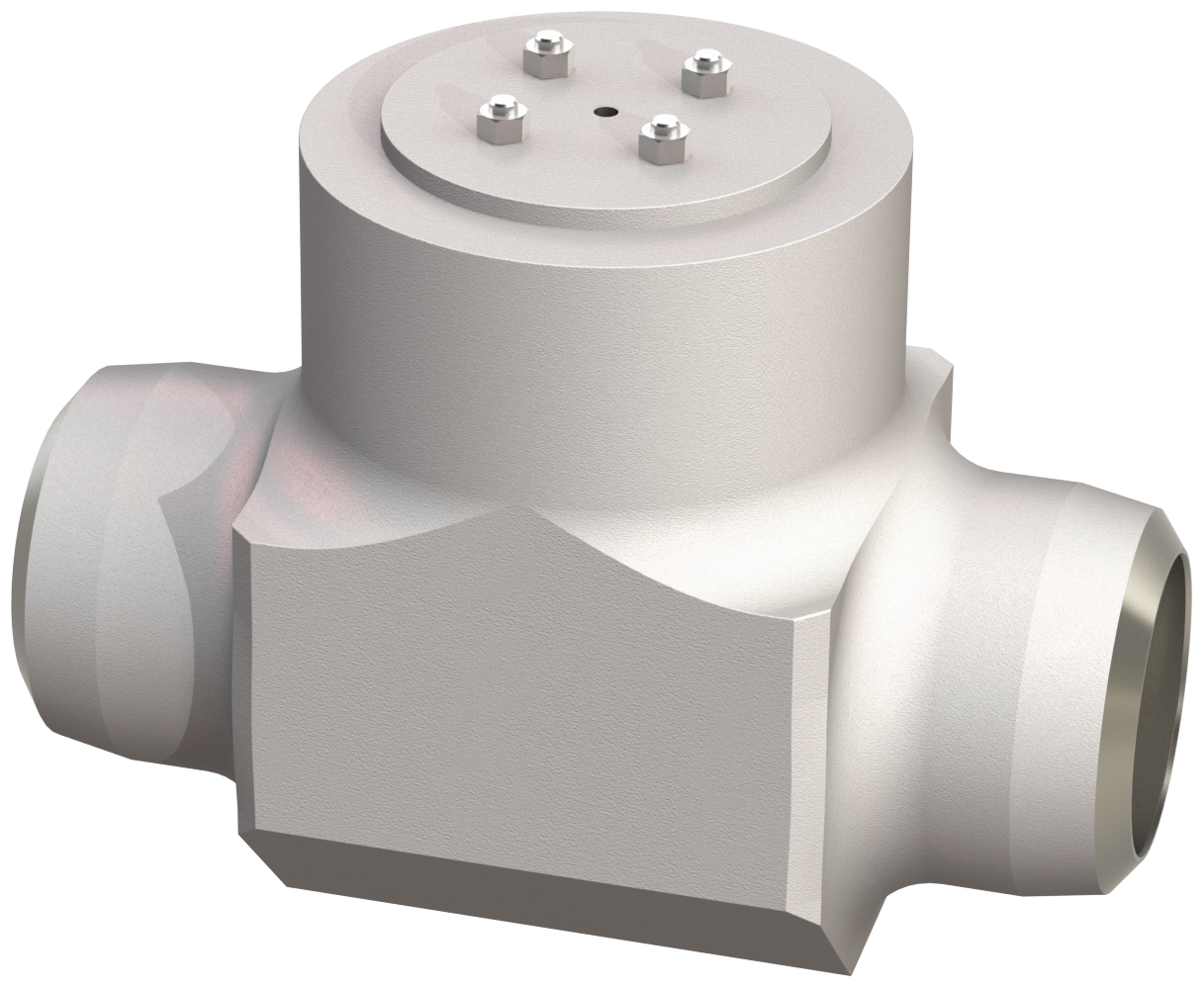

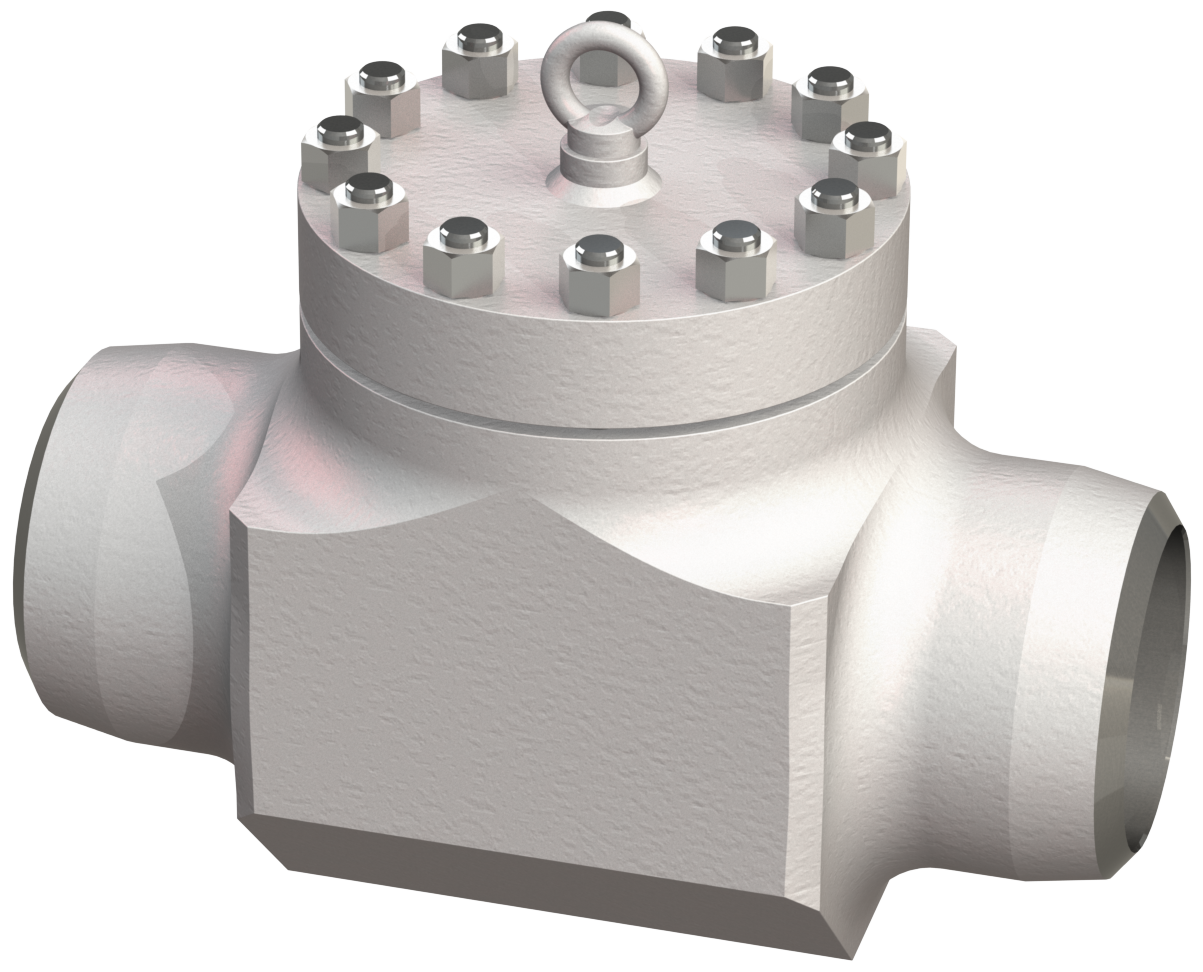

  5. Check valves
  6. Check valves with self-sealing cover closures or with bolted covers


    1. made of forged steel
    2. ASME class 900 – 4500 / PN160 - 630
    3. NPS 2" – 32" / DN50 – 800
    4. as per ASME or DIN/EN standards
    5. with weld ends and flange
    6. for temperatures of -196 °C to 650 °C








  7. Dirt traps
  8. Dirt traps with self-sealing cover closures or with bolted covers


    1. made of forged steel
    2. ASME class 1500 – 4500 / PN160 - 630
    3. NPS 2" – 36" / DN50 – 900
    4. as per ASME or DIN standards
    5. with weld ends
    6. for temperatures of up to 650 °C










  9. Line blind valves

    1. made of forged steel
    2. ASME class 1500 – 4500 / PN160 - 630
    3. NPS 2" – 36" / DN50 – 900
    4. as per ASME or DIN standards
    5. with weld ends
    6. for temperatures of up to 650 °

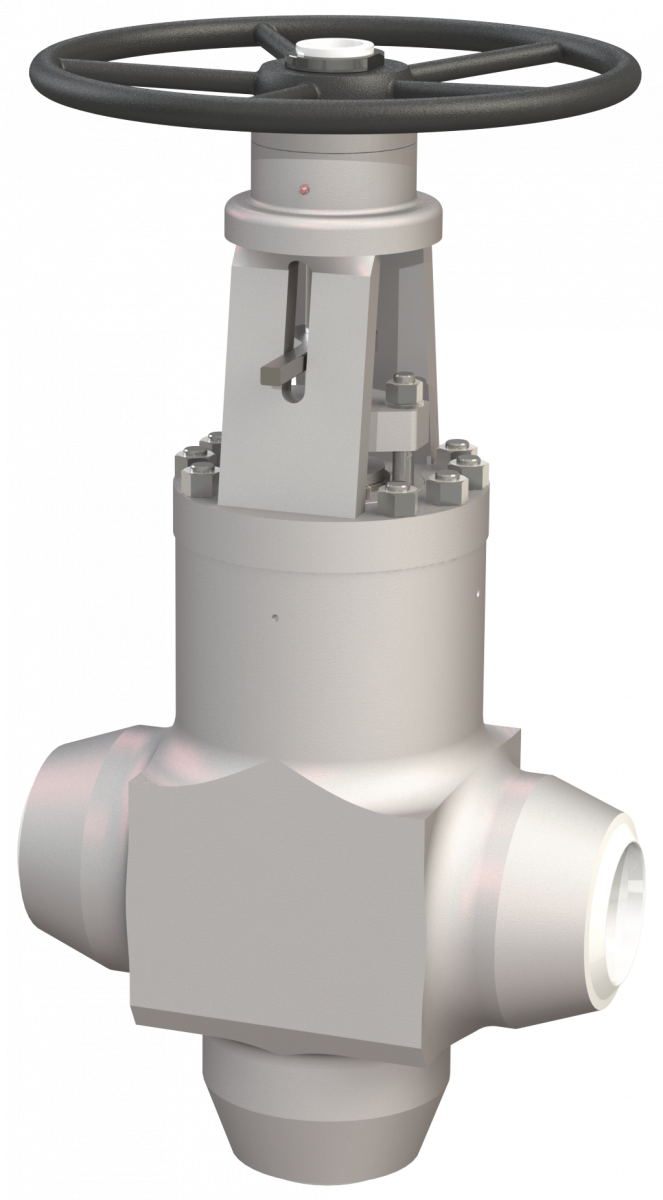

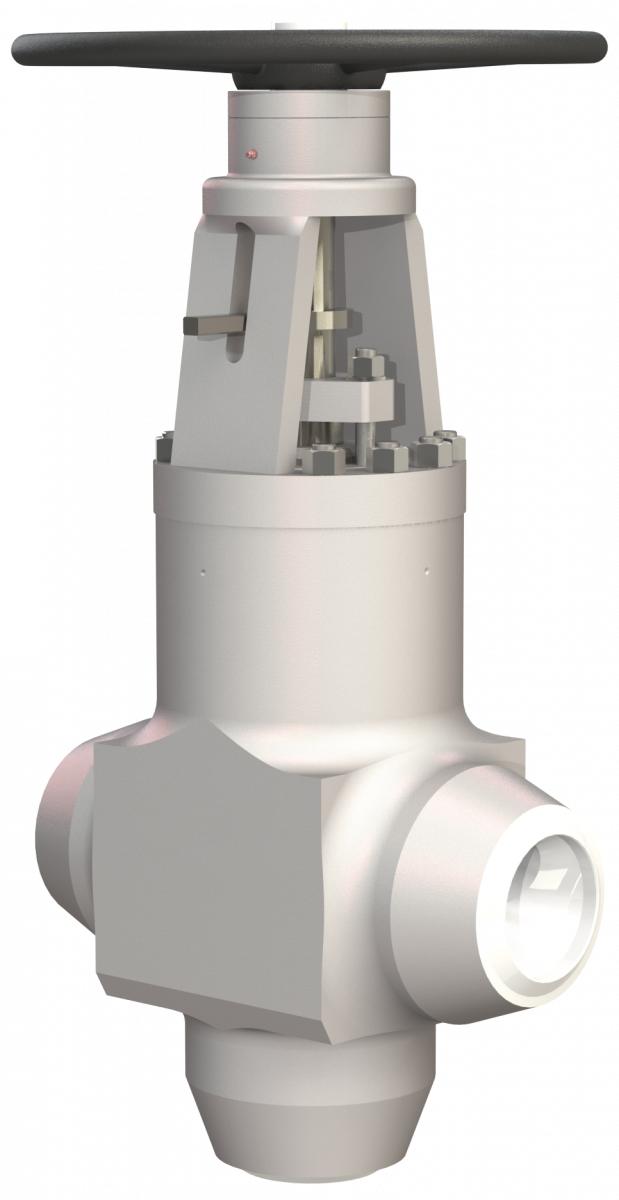

  10. Preheater bypass valves
  11. Preheater protection


    1. made of forged steel, cast version on request
    2. Medium-controlled or with electric drive
    3. ASME class 900 – 4500 / PN160 - 630
    4. NPS 2" – 24" / DN50 – 600
    5. as per ASME or DIN standards
    6. with weld ends
    7. for temperatures of up to 400 °C
