TYPE KL-RUE

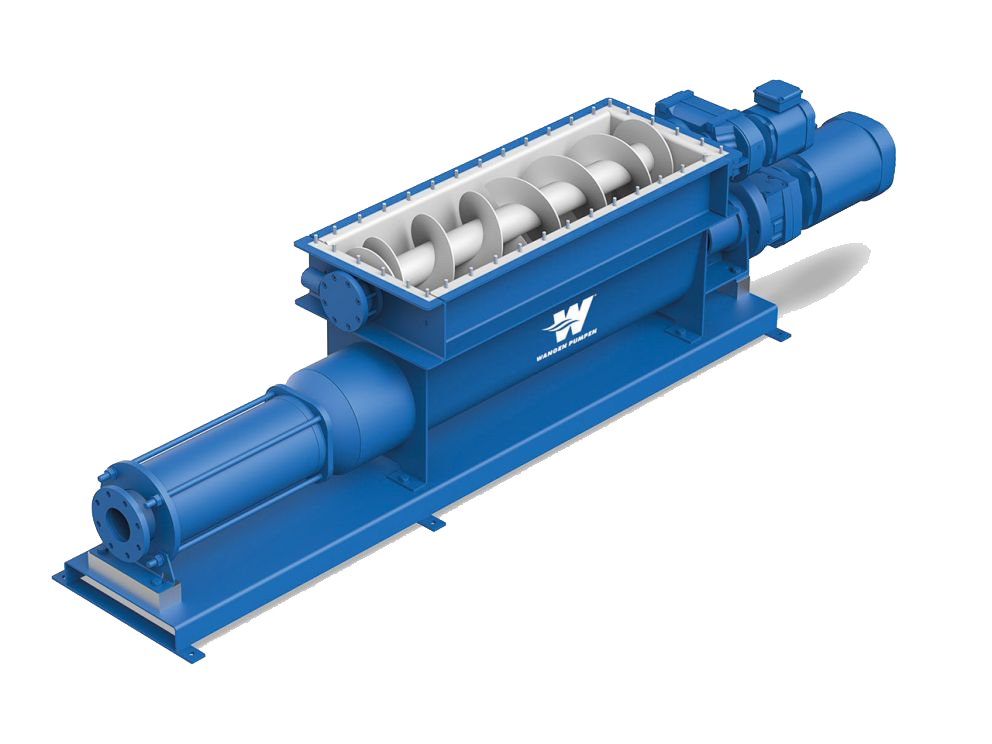

hopper feed pump Type KL-RUE

Pumps of the KL-RÜ series are built according to our proven modular principle. This allows high flexibility, low spare parts inventory, and minimum downtimes for repairs. Other features include: sophisticated and robust cardan joints with screw conveyors, fibers do not get wrapped around the joint and the joint connectors thanks to the effective protection device.



  • maintenance-friendly
  • robust bearing pedestal with close-coupled drive and self-centering of the drive shaft (optionally with bare shaft)
  • various hopper sizes available
  • low-pulsation, continuous conveyance independent of pressure and viscosity
  • gentle pumping
  • modular design for high flexibility and short downtimes for maintenance and repairs
  • almost pulsation-free conveyance
  • modular design for short downtimes
  • consistent modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • compact construction based on modular principle for high flexibility
  • no tangling of fibers around the joint or joint connections
  • long service life
  • high pressure performance
  • high dosing accuracy, also at low speed
  • high operational reliability
  • good price/performance ratio (standard product group)
  • good pumping performance even with abrasive and fibrous materials in the media
  • large viscosity range
  • constant metering because the discontinuous input is compensated by buffer volume in the collecting container
  • low Life Cycle Costs
  • unattended operation possible
  • excellent metering, important for dryer and incinerator operation

Conveyance of dewatered sludge with a high solid content.
  • conveying media
  • feeding
  • to storage areas
  • to silos
  • to dryers
  • from screen belt presses
  • from decanters

  • inorganic slurry
  • cement
  • lead paste
  • sewage sludge
  • refinery sludge
  • dewatered sewage sludge up to 45 % dry substance
  • organic sludge

  • service-proven sealing systems
  • various rotor/stator geometries (S, L and H geometry)
  • various mechanical seals as standard versions
  • various geometries and pump sizes
  • stator with s-cone inlet for optimum filling of the pumping chamber
  • modern sealing system (LWD mechanical face seal)
  • shaft seal (mechanical face seal with oil quench)
  • available seal types: Stuffing box, mechanical seal, LWD mechanical face seal, lip seals, with and without rinsing or buffer fluid
  • flexible drive selection
  • robust cardan joint
  • robust bearing pedestal with close-coupled drive and self-centering of the drive
  • enlargement possible with add-on funnel
  • double, maintenance-free bearing
  • fully developed, robust universal joint with pre-feeding screw
Output 0 - 150 m³/h (at 25 - 100 rpm)
Dry substance Content max. 45%
Free ball passage up to 150 mm
