Pumps For Food And Beverage Industry


TYPE WANGEN MX-F

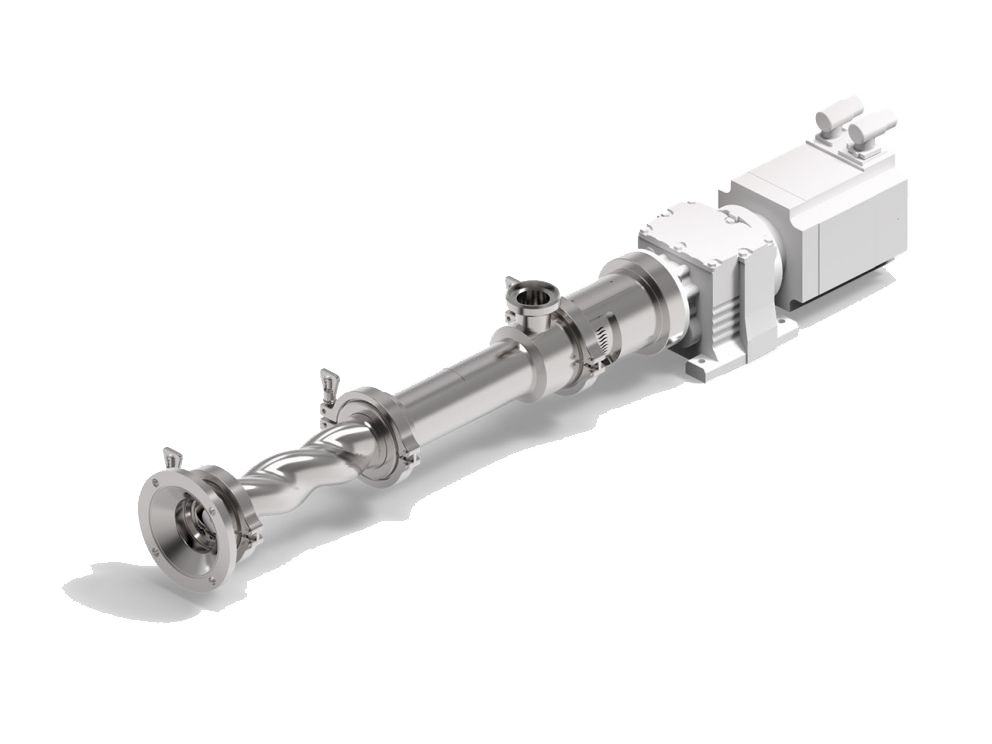

hygienic progressing cavity pump Type WANGEN MX-F

The WANGEN MX-F is a hygienic progressing cavity pump for emtying drums and vessels that contains high viscous mediums. The pump is therefore mounted on a plate. Both, pump and plate, is then pressed into the medium. The so displaced material feeds the pump through a hole in the plate. This ensures the permanent feeding of the pump, even after changing the medium.



    • almost pulsation-free conveyance
    • consistent modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
    • compact design avoids dead space and stagnantion zones
    • low space requirement due to compact design.
    • low dead space design of the pump interior
    • gentle pumping

The WANGEN MX-F is a hygienic progressing cavity pump that allows drum and hopper draining via follower plate.
  • low-impact delivery of products containing solids
  • drum and hopper drained via follower plate
  • conveying media

  • fat
  • glue
  • chocolate
  • tomato puree
  • vaseline
  • viscous polymer concentrates
  • sealants
  • peanut butter

  • stators in EvenWall® design (uniform elastomer wall thickness)
  • external cut surfaces
  • modular structure
  • easy cleaning thanks to construction with little dead space
Output 10 - 100.000 l/h
Free ball passage up to 76 mm
